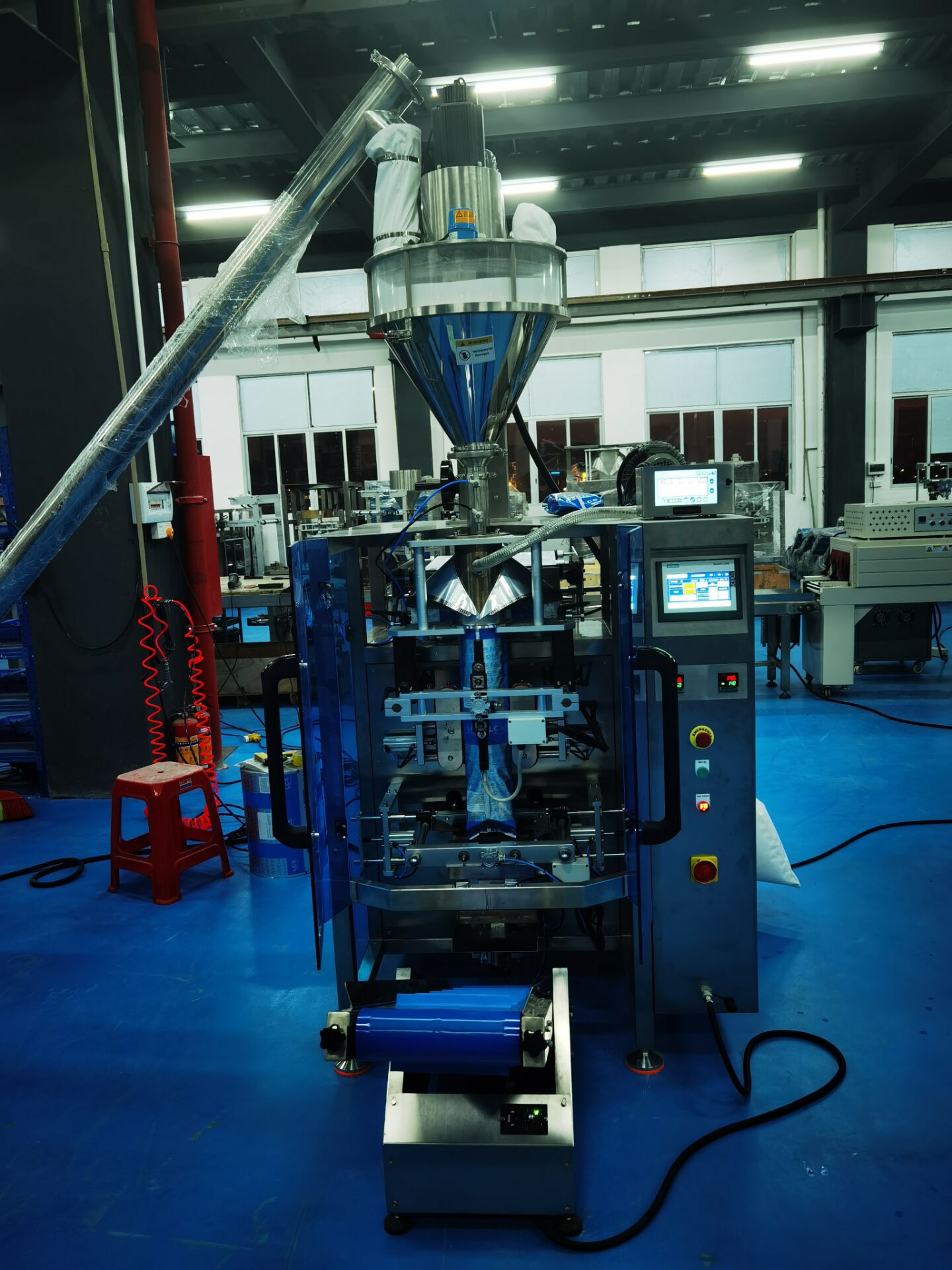

Large Volume Powder Packing Machine
Introduction:
It's suitable to pack various kinds of fine Powder, like milk powder, flour, soybean powder, medicine powder, cosmetic powder, etc.
Function:
The machine can automatically measure, make bags, fill, seal, cut, print codes and make easy tearing notches. This machine adopts the advanced PLC operation system, and the Chinese/English screen, easy to manipulate and maintain.
Optional:
Date printer, thermal transfer printer, conveyor, weight checker, auto label machine, nitrogen generator, Z elevator, auto feeding machine, packaging films, plastic bags/pouches etc.
|
Name |
Large Volume Powder Packing Machine |
||||
|
Model |
HM-420PG |
HM-520PG |
HM-620PG |
HM-720PG |
HM-820PG |
|
Bag type |
Back-side seal bag type with gusset/punch/zipper |
|
|||
|
Filling Type |
Auger filler/Vacuum filler |
|
|||
|
Bag size |
L80-300mm; W65-200mm |
L80-350mm; W80-250mm |
L80-400mm; W50-300mm |
L80-450mm; W60-350mm |
L80-500mm; W70-400mm |
|
Film width |
Max.420mm |
Max.520mm |
Max.620mm |
Max.620mm |
Max.820mm |
|
Capacity |
20-40 bags/min |
20-40 bags/min |
5-15 bags/min |
5-10 bags/min |
1-3 bags/min |
|
Volume |
100-1000g/bag |
200-2000g/bag |
2500-5000g/bag |
6L-15L |
15L |
|
Control Style |
PLC system+ English operation screen |
||||
|
Power |
3.0 Kw |
3.6KW |
4.2KW |
4.7KW |
5KW |
|
Power Supply |
220V, 50Hz, Single phase |
||||
|
Air consumption |
0.6-0.8Mpa 30L/min
|
||||
|
Appearance |
Stainless steel 304 |
|
|||
|
Weight |
G.W430Kg |
G.W560 |
G.W 680KG |
G.W730KG |
G.W850kg |
|
Dimension |
L2100¡ÁW1140¡ÁH2460mm |
L2230¡ÁW1540¡ÁH2460mm |
L2410xW1653x2480mm |
L2560xW1690x2720mm |
L2800xW1953x2900mm |
|
Film materials |
paper/PE; cellophane/PE; aluminum/PE; BOPP /PE; nylon/PE etc. |
||||
