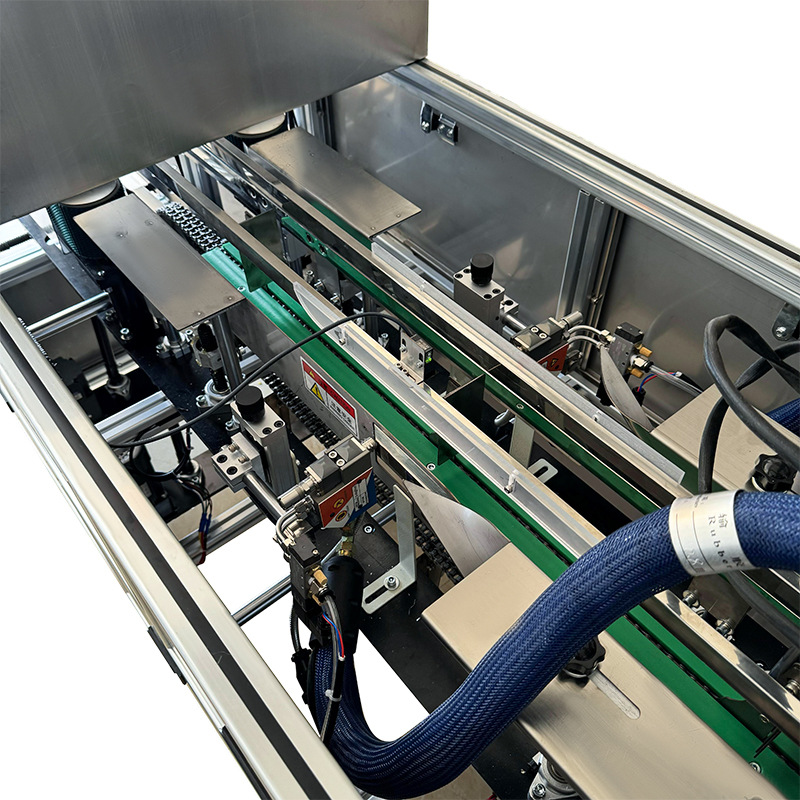

Semi-auto Box Sealing Machine

Semi-auto Box Sealing Machine

Semi-auto Box Sealing Machine

Introduction:

It is used for sealing different box sizes by glue.

Features:

1. The appearance of the fuselage is integrated and the operation is stable, which is convenient to put the box.

2. The overtemperature warning system will automatically alert you when the temperature is too high.

3. The top of the equipment has an exhaust device design, which can connect to the exhaust pipe to keep the smoke smell away from the workshop.

4. The integrated plastic bucket has a heat sink to make the heating more well-distributed. The rubber bucket has a slope design to prevent the glue from losing activity caused by repeated heating hence reducing viscosity. The rubber barrel is added with heat insulation cotton to decrease the working temperature by 10-20 degrees, preventing the glue from burning out and losing its activity.

5. It adopts the Taiwan Taian frequency converter, which is more stable and durable.

Technical Parameter



Model

HM-SP20

HM-RL20

HM-SP21

HM-RL21

Box size

L100-300mm;W60-200mm;H30-90mm

L140-300mm;W80-200mm;H30-90mm

Speed

40-70 boxes/min

60-90 boxes/min

Power

3.2KW

3.5KW

4KW

4KW

Glue volume

0

1.5KG

0

1.5KG

Machine size

L2945mm;W700mm;

H1700mm;

L2945mm;W700mm;H1160mm

L3190mm;W700mm;H1715mm

L3190mm;W700mm;H1075mm

Machine weight

300KG

Voltage

220V/110V,50hz/60hz

Noise

<50 decible

Working temperature

180-200 ¡æ
