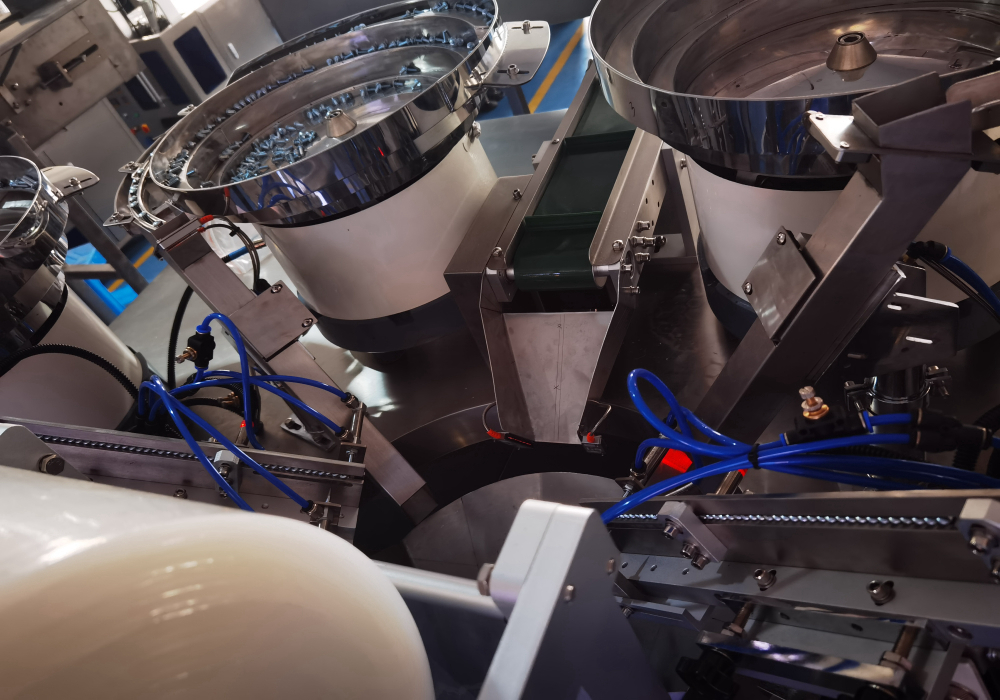

Single Bowl Hardwares Packing Machine
Introduction:

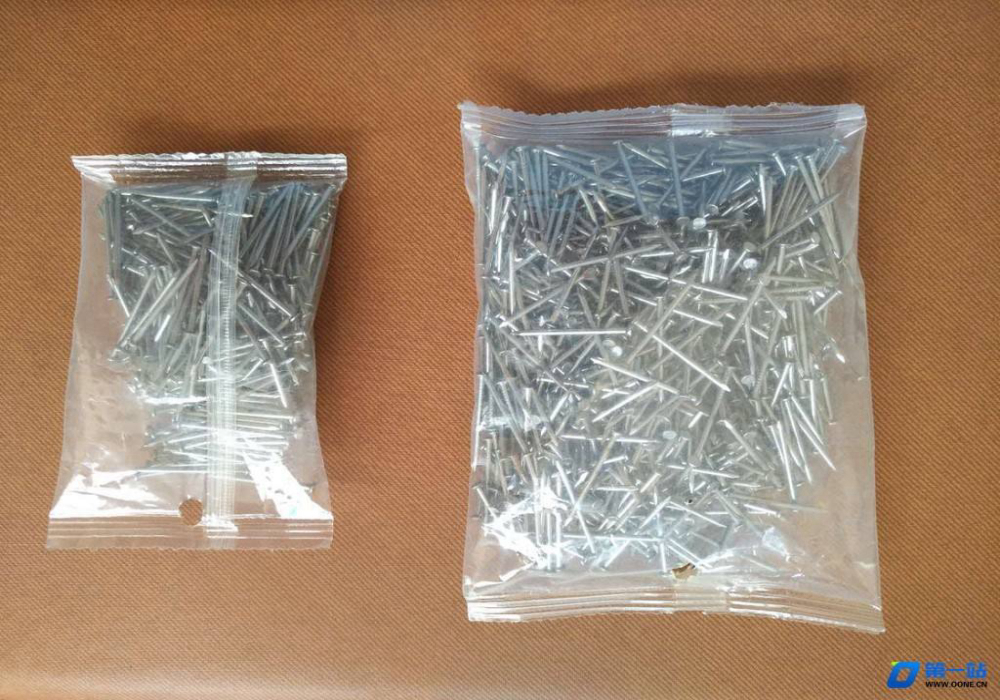

The machine can pack different kinds of hardwares such as screws, nails, bolts, nuts, washers, fasteners, doll eyes, drawing pins, paper clips etc.
Function:
It is automatically forming film tube, cut, seal from film rolls and also can date printer if you need. The machine will match different quanties of rotary bowls as different products.
Optional:
date printer, thermal transfer printer, conveyor, weight checker, auto label machine, nitrogen generator, Z elevator, auto feeding machine, packaging films, plastic bags/pouches etc.
|
Name |
Auto Screws Counting & Packing Machine |
|||
|
Model |
HM-S260 |
HM-S320 |
HM-S420 |
HM-S520 |
|
Power |
1.5kw |
2.8kw |
3.5kw |
4.8kw |
|
G.W |
150kg |
180kg |
320kg |
400kg |
|
Sachet size |
70-150mm |
70-150mm |
140-200mm |
140-250mm |
|
Film width |
240mm |
300mm |
400mm |
500mm |
|
Capacity |
10 -100 bags/min ( as different sizes and quantity ) |
|||
|
Quantity |
As customer¡¯s requiry |
|||
|
Counting method |
Screen or railway |
|||
|
Bag style |
Back-side seal sachet with notch or punch etc. |
|||
|
Control style |
PLC system / English Interface |
|||
|
Voltage |
AC 220V 50Hz single phase or 110V, 60Hz |
|||
|
Film |
VMPET/PET/PE, Nylone/PE, Bopp/PE etc |
|||
